Motori e combustibili
| | | |
Nr Motori | 2 |
Potenza | 2736
HP
|
Marca Motori | MTU |
Modello Motori | 12V4000 |
Ore moto | 7787 |
Trasmissione |
Linea d'asse
|
Nr Serbatoi | 1 |
Capacità | 28000 litri (6165.60 galloni) |
Materiale Serbatioi | GRP |
|
Idraulici
| | | |
Nr Serbatoi | 1 |
Capacità | 5000 litri
(1101.00 galloni) |
Materiale | GRP |
Boiler | Si |
Autoclave | Si |
Dissalatore | Si |
| |
|
Elettrici
| | | |
Tensione | Non indicata |
Carica batt. | Si |
Nr Batterie |
Non indicato |
Capacità |
Non indicata |
Generatore 220V | Si 2x100 KW KOHLER |
Potenza |
2000.0Kw |
Inverter | Si |
|
|
|
Materiali
| | | |
Scafo | COMPOSITE/GRP |
Coperta | TEAK |
Tuga |
COMPOSITE/GRP |
|
|
Descrizione

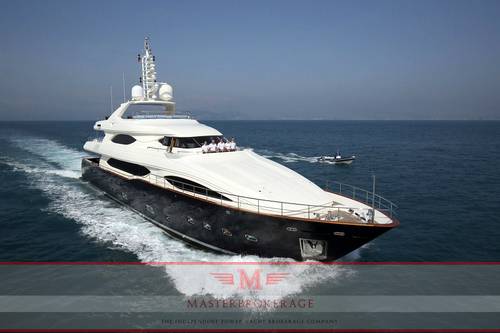

MY "SIMA " – CRN Ferretti Group CL 128 | Launched in 2007 Measuring 39.60 metres in length, SIMA is a luxury motor yacht from the prestigious CRN Ferretti Group CL 128 series, built by the renowned Ferretti Group, a leader in the production of high-end superyachts. Launched in 2007, SIMA combines outstanding performance, timeless design and exceptional onboard comfort, making her the ideal choice for those seeking a flybridge yacht with advanced technology and elegant interiors.
A key feature is the Mitsubishi Anti-Rolling Gyro system, offering superior stabilization both at anchor and underway, ensuring a smooth and relaxing experience for guests even in challenging sea conditions.
Powered by twin MTU 12V 4000 M90 engines, SIMA reaches a top speed of 24 knots, with a cruising speed of 17 knots and a range of approximately 1,800 nautical miles, ideal for extended cruising in the Mediterranean or the Caribbean. |
|
|
Interni
ACCOMMODATION 10 Guests in 5
Cabins, 3 x double + 2 x twins.
Crew: 8, sleep in separate crew quarters.
Function and flexibility underscores the design of yacht main saloon and dining room, with seating for up to twelve guests, designed by Fendi. An elegant divider stands between the adjoining rooms flanked by a staircase leading up to the sky-lounge on the port side.
Her guests may enjoy the uninterrupted view running through the saloon and out to the main deck, while afterwards, translucent doors close this area off as guests proceed through to the saloon, the skylounge or the outside decks for the evening’s entertainment. In these instances, guests may choose to enjoy a film screened on the flat TV screen that folds down from overhead in the saloon. For Al-fresco dining, the upper deck is the main option with a covered table and seating, while the sundeck also offers a smaller, less formal table arrangement. Her teak decking, loungers and umbrellas make the large sundeck a very welcoming and relaxing area, with plenty of space both in the sun and the shade. A whirlpool spa and bar complete the facilities on this well-appointed, spacious sundeck. She offers accommodation for ten guests in five generously-sized cabins. Located forward on the main deck, the master stateroom is accessed through a private reception/office area, which can be closed off from the suite if desired. Well appointed guest accommodation is comprised of two twin cabins with oversize single beds and with a Pullman each, and two double staterooms based on the lower deck level. The latter two cabins have twin basins and their own full-size tubs, with separate compartments for WCs and bidets. All her staterooms are air conditioned and with en-suite facilities. Of course she is equipped with latest audio-visual gear such as; SAT TV, Apple with Crestron and Airplay Mode iPod docking stations.
GALLEY & LAUNDRY EQUIPMENT GALLEY - 1 x Dishwasher MIELE G7856 - 1 x Fridge Galley Gaggenau SK-591 264/02 - 1 x Oven Gaggenau - 1 x Hob MieleE 4 fire spot - 1 x Hob Miele 2 fire Spot - 2 x Microwave Miele M8261 - 2 x Fridge storage room Angelo Po LAUNDRY - 2 x Washing machine Miele Professional PW 6065 - 2 x Dryer Miele Professional PT 7135C Plus CREW QUARTERS - 1 x Fridge Crew mess Miele K845 i-1
|
|
Armamento
GENERATORS: 2 x Kohler 100 EFOZ GEARBOX: MTU ZF 4650 A STABILISERS: Trac at anchor SHORE POWER: Shore power: Asea 50-60Hz 220V – 380V BATTERIES: 2 x GMDSS Batteries 12V 140Ah MAIN ENGINE START: 2 x Engine Batteries 12V 140Ah SERVICE: Service Batteries 12V 205Ah x 20h GENERATOR START: 2 + 2 Generator Batteries 12V 140Ah CHARGERS: 1 x Mastervolt Mass 24/75 (Engine) 1 x Mastervolt Mass 24/75 (Emergency) 1 x Mastervolt Mass 24/25 (GMDSS) 1 x Mastervolt Mass 24/25 (Generator) 1 x Mastervolt Mass 24/75-C (Service) EMERGENCY: 4 x Emergency Batteries 6V 240Ah AIR CONDITIONING: Condaria 90002 WMC/Oll 380v R22 BOILER: Gianneschi & Ramacciotti 300 Pmax 6bar DESALINATION PLANT: Idromar MC3J 380 50Hz FIRE PUMP: Gianneschi & Ramacciotti ACM501BTT BILGE PUMPS: Gianneschi & Ramacciotti ACM501BTK SEAWATER PUMP: Gianneschi & Ramacciotti MV44T VACUUM PUMP: Jets 25MBA MOTOR PUMP: Lombardini DGV 1205/53720W AUTOCLAVE: Gianneschi & Ramacciotti Jet 5188TE 230-400v 3F FRESH OIL PUMP: Gianneschi & Ramacciotti FQ 15T WASTE OIL PUMP: Gianneschi & Ramacciotti FQ 15T FUEL PUMP: Gianneschi & Ramacciotti CP4ON 24v, 0.75kW FUEL SEPARATOR: Alfa Laval MMB 304 380v 50Hz
DECK EQUIPMENT STERN DAVIT: Besenzoni Capacity 400kg BOW DAVIT: Besenzoni Capacity 400kg BOW DAVIT & HATCH PANEL: Oil system M90 4 oil bath ANCHOR WINCH: 2 x Maxwell GANGWAY: Besenzoni STERN WARPING: Maxwell AMERICAN BOW THRUSTER: 2.0" TRAC HYDRAULIC THRUSTER ANCHOR CHAIN: Port side - 135m/ Starboard side - 150m ANCHOR TYPE: Pool
TENDER & WATERSPORTS EQUIPMENT - TENDER: 1 x 5.20m Narwhale inflatable tender, 50hp Yamaha outboard 1 x 4.90m Castoldi Jet tender, Yanmar 4BY2 150 hp in-board - WATER SPORTS: 1 x Brand new Seadoo GTI 4 Tec Jet ski for 3 passengers 1 x Jetski Yamaha WaveRunner GP1300R 1 x Set of Adult Water ski 1 x Set of Junior Water ski 1 x Wakeboard 8 x Snorkel sets 1 x Inflatable Banana for 3 person 1 x Donut for 2 person
|
|
Strumentazione
NAVIGATION EQUIPMENT AUTOMATIC PILOT: Simrad Autopilot AP50 RADAR: 3 x Furuno NAVNET GD-1920-BB (2 x Array antennas) AIS: Furuno FA-15 GPS: Navigator Furuno GP-90 CHART PLOTTER: Plotter Geonav Power 2.0.6. NAVTEX: Receiver Furuno NX-700 CAMERA(S): Night vision Camera Mariner FLIR
COMMUNICATION EQUIPMENT - VHF: VHF DSC Sailor RT5022 VHF-DSC Sailor A1 Fleet 77 TT-3622B Sailor - MISCELLANEOUS: TT-3042C Sailor Remote Alarm/Distress Box INMARSAT Sailor TT- 3606E Message Terminal
ENTERTAINMENT EQUIPMENT - Mac mini - 9 x iPad minis & Apple TVs (Guest cabins, Captain’s cabin, Main Saloon, Upper Saloon & Sundeck)
|
|
Note aggiuntive
|
FUEL CONSUMPTION: 250 litres / 66 US gallons per hour RANGE: Up to 1,800 nm
FUEL: 28,000 litres / 7,396 US gallons FRESH WATER: 5,000 litres / 1,320 US gallons GREY / BLACK WATER: 2,400 litres / 624 US gallons
REFIT AND MAINTENANCE WORKS 2022/2023 - MTU engines serviced and new ECU's installed - Kohler generators fully serviced - All teak decks sanded - Boilers serviced - Hamman serviced - Service steering system - Service emergency fire and bilge pump - New switchboard panel installed - Serviced tenders and jetskis - Hull antifouled and new anodes - Hull valves serviced and sea chests cleaned - All wood varnished and bilges painted - All lifesaving equipment - Fender covers replaced for new - Carpets and sofas cleaned - New curtains fitted - New stair carpets installed - New TV in Owner's cabin - Laundry machines serviced 2021/2022 - Engines and gearbox serviced - New coat of antifoul applied
|
|
