Engines and fuels
| | | |
| Nr Motors | 2 |
Power | 385
HP
|
| Engine Brand | CAT |
Engine Model | C12 |
| Engine hours | 3316 |
Trasmission |
Not indicated |
| Nr Tanks | 1 |
Capacity | 38324 liters (8438.94 gallons) |
|
Idraulics
| | | |
| Nr Tanks | 1 |
Capacity | 3400 liters
(748.68 gallons) |
| Material | Not indicated |
| Boiler | Yes |
Autoclaves | Yes |
| Dessalator | Yes |
| |
|
Electrics
| | | |
| Voltage | Not indicated |
Charge batt. | Yes |
| Nr. Batteries |
Not indicated |
Capacity |
Not indicated |
| 220V generator | Yes 2x55 KW KOHLER |
Power |
106.0Kw |
| Inverter | Yes |
|
|
|
Materials
| | | |
| Hull | STEEL |
Deck | TEAK |
| Deck house |
ALUMINIUM |
|
|
|
Description

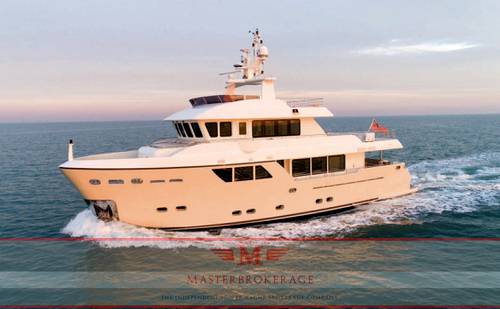

She is the fourth and most recent Darwin Class 86’ built by Cantiere delle Marche.
She differs from her sisterships for the bigger windows on main deck and upper deck, a feature that contributes to soften her austere profile and allows for more light to shine in her two salons.
Registered just under the 200 GrT threshold, she features very subtle and elegant elm wood interiors, 2.10 mt high celings, and iroko floorings.
With a few décor choices and interior design changes, this neutral color palette can be either twisted into a modern and stylish ambience or given a classic and warm tone. |
|
|
|
Interiors
ACCOMMODATION
4 Cabins, 10 Guests (8+2 pullman beds).
Crew: 4 in 2 cabins.
The general arrangement features four staterooms on lower deck, including a spacious and comfortable Master cabin right in the most stable area of the vessel. On main deck, a generous
and cosy salon with a custom L-shaped couch and a table for 8 complements the guest space.
Continuing forward, there are crew quarters, 2 cabins with ensuite bathrooms, a very spacious galley and a generous crew dinette with a laundry station and extra fridges
and freezers. Both galley and dinette have their own access through the side deck for a better crew circulation and guests’ privacy.
On the bridge deck, a 6 mt tender can be stored during long passages and will ensure a wet-free shuttle back and forth from villages, marinas and beaches.
When towed, its place can be taken by sunbeds and free standing furniture, complementing the design of the cockpit which also feature a teak table and a pantry with fridge, freezer and Miele hob.
A second outdoor area featuring a large sunbed area is located on the foredeck while a second and more private salon is located just aft of the wheelhouse.
The sun deck offers a variety of uses: al fresco dining, BBQ, sunbathing and observation point of the amazing and secluded destinations this vessel can reach.
A fourth helm station, after the wheelhouse and the two wing stations, is found on the sun deck too.
Under a technical point of view, is equipped with an unrivalled engine room for vessels of this size, overengineered and extraordinarily easy to maintain.
GALLEY & LAUNDRY EQUIPMENT
MAIN GALLEY EQUIPMENT
Cooking Equipment:
- MIELE HOB
- MIELE HOOD
Refrigeration/Freezer: 1X MIELE
Dishwasher: MIELE
Oven: MIELE
Other: Food grinder
CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT
Microwave:
Refrigeration/Freezer: 3X MIELE
Main Deck: ICEMAKER +FRIDGE
Upper Deck: ICEMAKER + FRIDGE
Sun Deck: WEBER BBQ + ICEMAKER + FRIDGE
Wine Storage: 3X approx. 30 BOTTLES MIELE
Main Laundry Equipment:
- MIELE WASHING MACHINE +
- MIELE DRIER
Crew Laundry Equipment: WASHING MACHINE + DRIER |
|
Equipment
MAIN MACHINERY
Propulsion Type: Shaft - propeller
Gear Boxes: ZF W325
Propellers: RADICE 5 BLADES MIBRAL
Engine Ventilation: 2X FEIT 380V 0,37 KW
GENERATORS & ELECTRICITY
Output/Electricity: 2X 55KW
Generators: KOHLER 55EFOZDJ
Generator Hours: Port: 8034 - Starb.:8034
Generator Fuel Consumption: Approx.8 Lt/hr
Shore Power: 380V
Shore Power Transformer: 45KW
Battery Chargers: MASTERVOLT
AUXILIARY MACHINERY
Steering System: FBR
Emergency Steering: MANUAL
Bow Thruster: CMC 35KW
Stern Thruster: CMC 25KW
Stabilizers: CMC . FINS (IN NAVIGATIO +ANCHOR)
Under Water Lights: x 4
Helm/Wing Station Controls: Wheelhouse + fly +2x wing stations
Fuel & Oil System
Fuel Filters: 2X SEPAR for each engine 2X RACOR for each gener.
Fuel Oil Separator: ALFALAVAL MIB303S13/33
Fuel Transfer Pump: FEIT TSL 24/40B
Fuel Filling Pump: n/a
Bunkering Station: Only on port side
Oily Bilge Water Separator: n/a
Dirty Oil Pump: manual
Lubrication Oil Pump: manual
Firefighting & Bilge System
Firefighting & Bilge Pump: 2X FEIT TSL23/1
Fresh Water System
Fresh Water Pressure: 2 X FEIT TYPE A995B
Hot & Cold Circulation Pump: 2
Hot Water Boilers: 2 X 150LT
Sea Water Pumps:
- 1X CHAIN WASHING FEIT TYPE TS20/1
- 1X SHAFT COOLING
Black & Grey Water System
Black Water Treatment: SELMAR MODEL BLUE SEA 2500LT
WC's (toilets/bidets): TECMA
Black & Grey Water Pumps:
- 1X FEIT TYPE MS15B
- 1X TECHTOP MOTOR TYPE T2A802-2
AC & Ventilation System
Air Conditioning: CONDARIA 180000 BTU
Air Compressor
Air Handling Units: 1 FOR EACH ROOM / 2 FOR MAIN SALOON
Engine Room Ventilation: 2x FEIT
Galley Ventilation & Extraction: Miele
Hydraulic System
Hydraulic Power Packs:
- 1x Opacmare for gangway + 1x opacmare for crane
- 1x Opacmare x platform transformer
Antifouling System
Type: Soni Hull
DECK MACHINERY & EQUIPMENT
Anchors: 2X 180kg
Anchor Chains: 2X 175MT 14mm
Anchor Windlass System: 2X MAXWELL 4500
Crane: 1 X OPACMARE - MAX 1000KG
Warping Capstans: 2X MAXWELL
Ground Tackle
Side Boarding Ladder: MANUAL
Stern Boarding Gangway: OPACMARE
Swimming Ladder: MANUAL – STAINLESS - STEEL/TEAK
Spotlights: YES/LEDS
SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT
Security System:
CCTV: 4X TVCC
Monitors: 1 IN THE WHEELHOUSE
Motion Sensors: N/A
Ship’s Safe: 4
Fixed Firefighting System: CO2
Firefighting Equipment: FIRE BLANKET + FIRE EXTINGUISHERS
Gas Detection
Smoke Detection
Fire Alarm
Alarms
Life Rafts: 2X 10 PEOPLE
Lifejackets
Life Rings: 3
EPIRB: 1
SART: 1
Flares and Signals
Medical Equipment
OTHER EQUIPMENT
Gym Equipment: 1X TAPIS ROULANT
Sun Awnings: UPPER DECK AFT, FLY AFT AND FWD |
|
Instrumentation
NAVIGATION & COMMUNICATION SYSTEMS
NAVIGATION SYSTEMS
Monitors: x 4 (TVCC,RADAR,PLOTTER, MULTIFUNCTION)
X-Band Radar: 2X FURUNO
Chart Plotter: FURUNO navnet 19”
Magnetic Compass: FURUNO SC502
Auto Pilot: FURUNO
Rudder Angle Indicator System: FBR
Echo Sounder: FURUNO
Speed Log: FURUNO
Depth Sounder: FURUNO
GPS: FURUNO GP-33
AIS: FURUNO
Navtex: FURUNO NX700
Wind Instruments: FURUNO
Horn
Search Lights
Night Vision Camera: FLIR
Bridge Navigation Watch Alarm: FURUNO
Ships Computer: MAX SEA
COMMUNICATION SYSTEMS
SAT com: THURAYA SATPHONE
Telecom Systems: STARLINK
VHF Radiotelephones: FURUNO
Portable VHF: I-COMs
Navtex Receiver: FURUNO NX700
GMDSS Battery Plant: 24V 2X12V |
|
Further information
|
RANGE: 6200 nm @ 9 knots
CAPACITIES
Fuel Capacity: 38324 Litres
Day Tank: 2X1004 Litres
Storage Tanks: 36316 Litres
Fresh Water Capacity: 2X1666 Litres
Water Makers: 2X250 Litres
Grey Water: 2152 Litres
Black Water: 982 Litres
Bilge Water Tank: 982 Litres
Ballast Water: 3980 Litres
Lube Oil: 419 Litres
Waste Oil: 419 Litres
ENTERTAINMENT SYSTEM
- Main salon
TV LED Samsung Tv (60”) UE60H7000 + Lyft
DVD Bluray player Samsung
Media Center Bose T510
Kit speaker Bose
Decoder SAT Mvision HD270
- Owner Cabin
TV LED Samsung Tv (50”) UE50H7000
DVD Bluray player Samsung
Media Center Bose T510
Kit speaker Bose
Decoder SAT Mvision HD270
- Sky Lounge
TV LED Samsung Tv (60”) UE60H7000 + Lyft
DVD Bluray player Samsung
Media Center Bose T510
Kit speaker Bose
Decoder SAT Mvision HD270
Sony Play Station
CD player Yamaha C600
Apple TV
- VIP Cabin STB
TV LED Samsung Tv (40”) UE40H6500
DVD Bluray player Samsung
Decoder SAT Mvision HD270
- Guest Cabin (x 2)
TV LED Samsung Tv (22”) UE22H4000
DVD Bluray player Samsung
Decoder SAT Mvision HD270
- Crew mess
TV LED Samsung Tv (22”) UE22H4000
DVD Bluray player Samsung
Decoder SAT Mvision HD270
- Wheelhouse
Radio CD/mp3/AM/FM/ipod ready
2 x Sonance speaker
- Main deck cockipit
Sonos Connect amplifier
2 x marine speaker Sonance XTR 1000
- Upper deck cockipit
Sonos Connect amplifier
2 x marine speaker Sonance XTR 1000
- Upper deck foredeck
Sonos Connect amplifier
2 x marine speaker Sonance XTR 1000
- Sun deck
Sonos Connect amplifier
2 x marine speaker Sonance XTR 1000
- Wi-Fi
Cisco switch 24 ports SLM224PT
Nr 3 Access points indoor
Nr 1 Accesso point outdoor
|
|
